Description

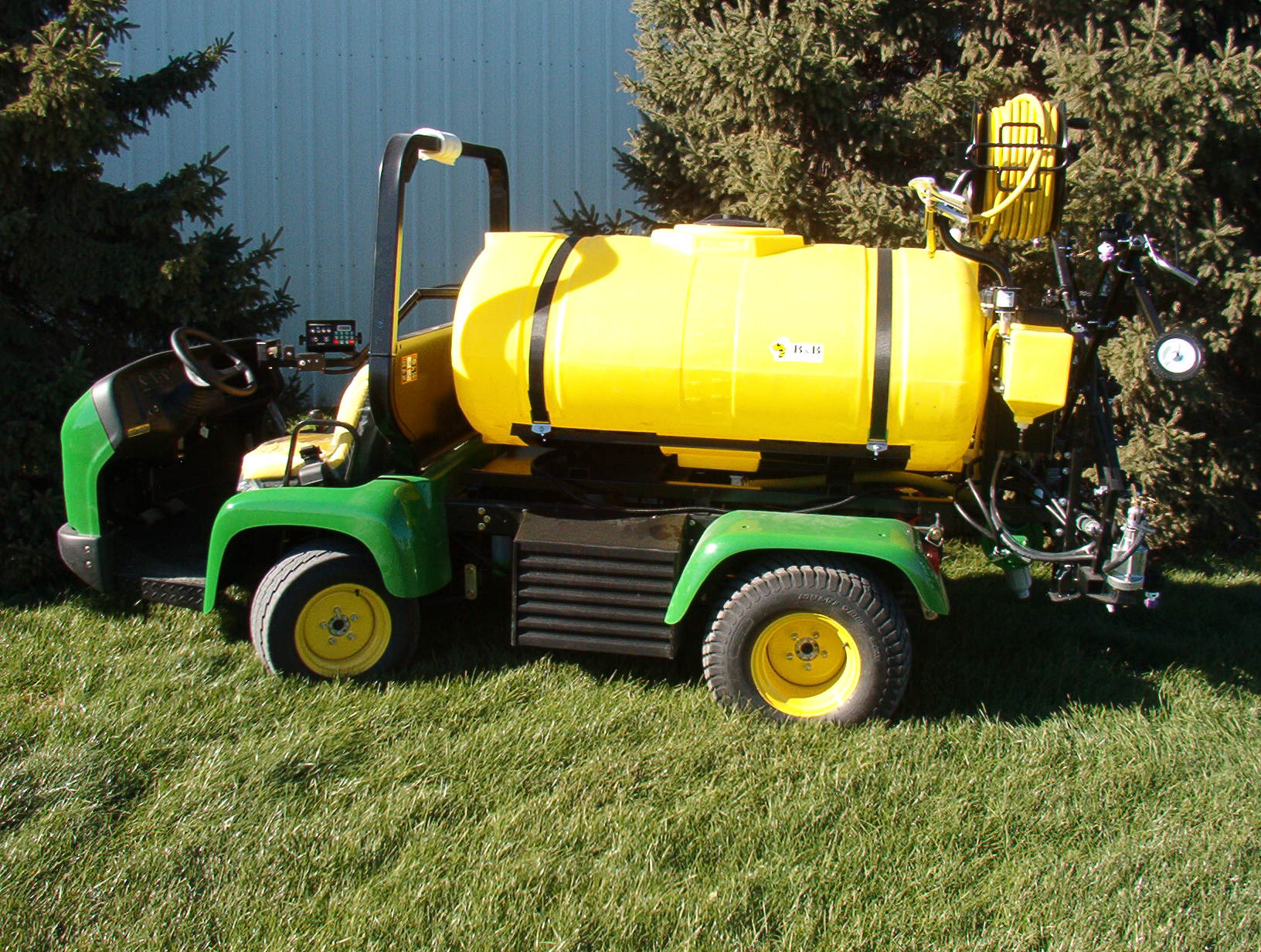

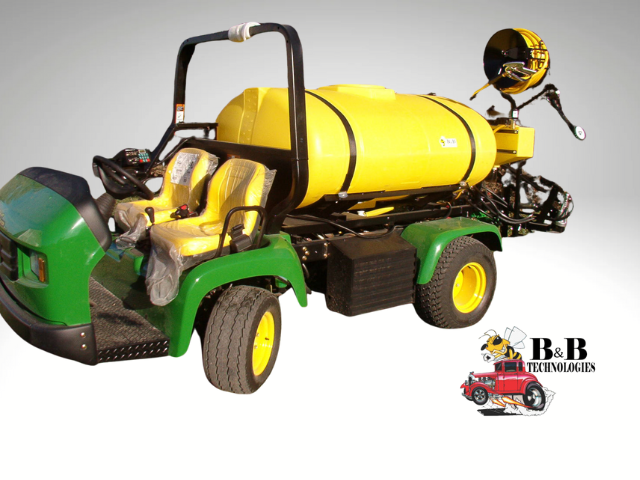

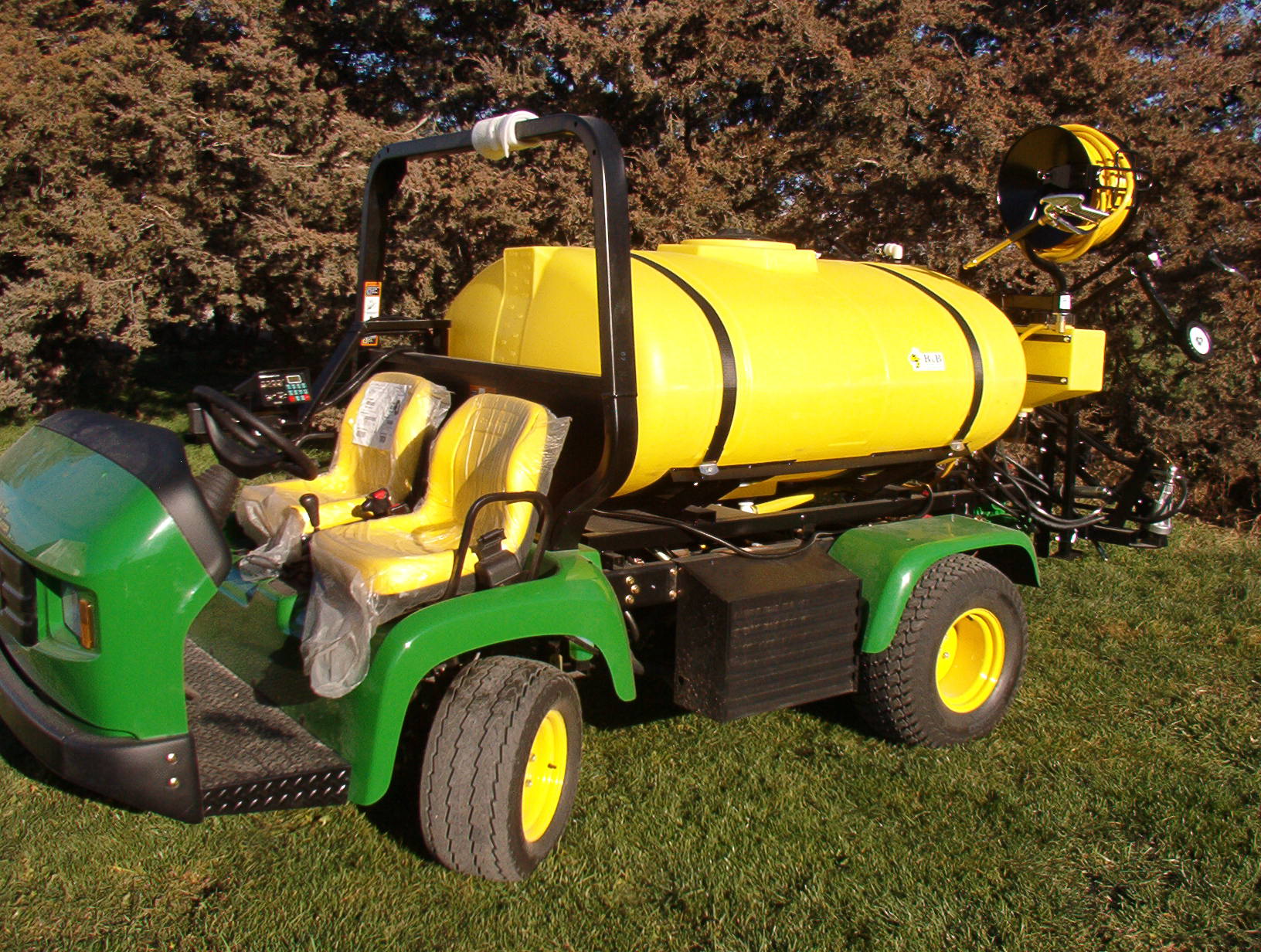

The JD200/300 is a 200/300 gallon low-profile sprayer designed to fit the John Deere ProGator truck. The elliptical tank, formed steel frame, and balanced boom offer the operator greater safety and spraying accuracy.
Tank
The tank is a low-profile 200/300 gallon elliptical poly with oversized sump and dual eductor agitation nozzles. The large fill well allows easy filling with chemical or water.
Pump
The high efficiency hydraulic driven pump provides up to 120 psi or up to 75 gal/min and is driven off the John Deere’s standard hydraulic system.

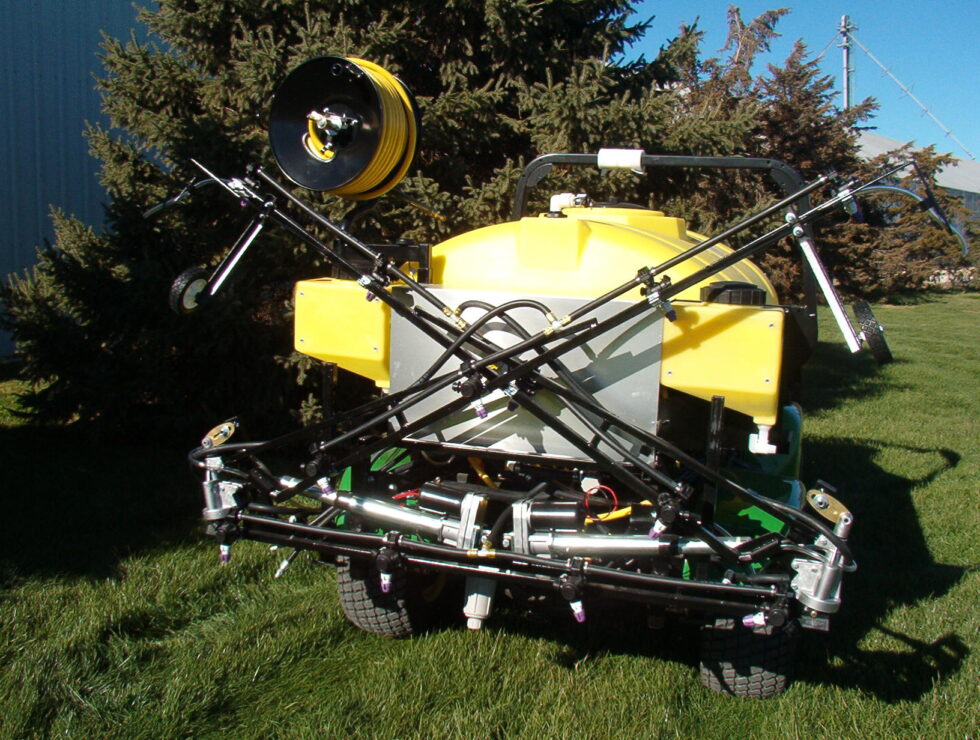

Spray Boom
The spray boom is a three sectioned, balanced boom. It has 4-20″ nozzles per section to give greater spraying accuracy and a coverage up to 20′. The boom wings have breakaway action, end guards, and can fold forward or cross in the back. It comes complete with Quick-Jet nozzle caps, no-drip diaphragm check valves, and your choice of nozzles.
Boom Valving
The standard control console with motorized ball valves and a butterfly servo valve give complete control of the 3 boom sections and instant control of pressure.
Frame
The heavy formed steel frame mounts with 2 quick-hitch pins in the back and a cylinder mount.
Emergency Wash Tank
All units come complete with an emergency 3-gallon water tank.
Accessories
Accessories include anti-siphon fill valve, sprayer stands, foam marker, hand gun & rack, hose reels, electric boom lift, and automatic rate controllers.
